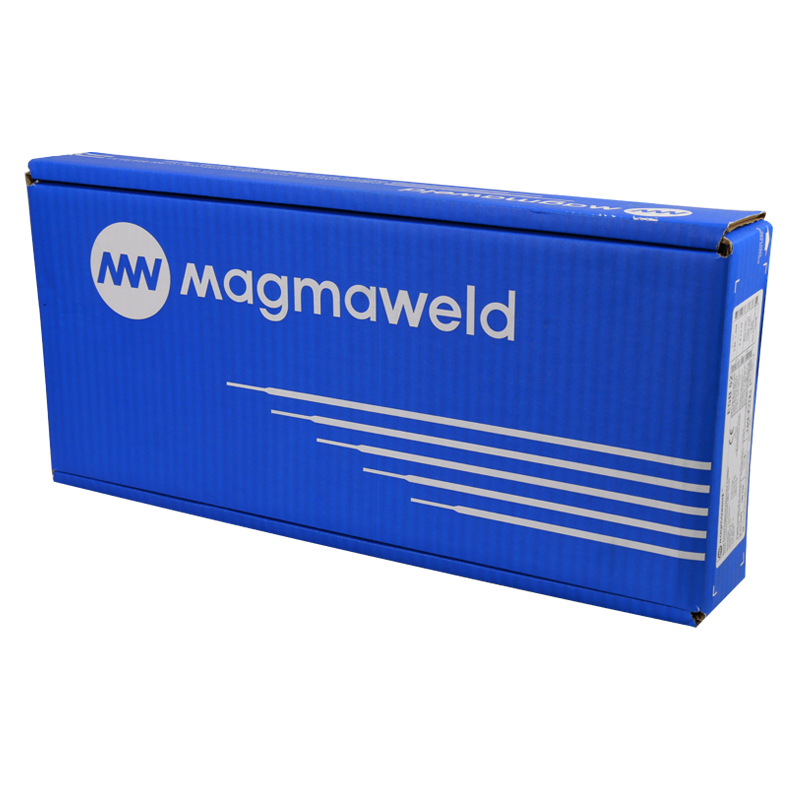

ESR 12 (E6012) ELECTRODE (2.5 X 350MM) 5KG
Login to see prices
SKU: 11107HREM2Magmaweld E6012 General Purpose Mild Steel Electrodes (ESR 12) Especially suitable for welding in sheets thinner than 5 mm, galvanized sheets and tubes, primer painted, painted and slightly rusty steels and in production of tanks and boilers, tube installations. Very easily operated in positional welding, including vertically-down. Good gap-bridging even at wide root openings. Smooth arc, well suited for tack-welding due to its easy arc striking and re-striking properties. Possible to use equally well both with AC and DC. Welds are smooth and blending into base metal without undercutting. Welding Positions:
Additional Information
| Weight | 5 kg |
|---|---|
| Length | 350 cm |
| Width | 2.5 cm |
| Esr | 12 |
| Material | Mild steel |
| Size | 2.50mm x 350mm |
| Yield strength | 480 n/mm² |
| Tensile strength | 560 n/mm² |
| Elongation a5 | 26% |
| Current type | Ac /dc+ |
| Charpy v notch properties (j) | 0°c > >=47j |
| Chemical composition(s) | C = 0.10 max, mn = 0.75 max, si = 0.35 max |
| Grade | E6012 |
| Package material | Tin |
| Set size | Single box |
| Standards | Aws/asme sfa 5.1 e6012, en iso 2560 a e 38 0 rc 11 |
