REG 25 BAR SS 2G ACETYLENE
Login to see prices
SKU: 700121Bottom entry design suited for top outlet cylinder valves.

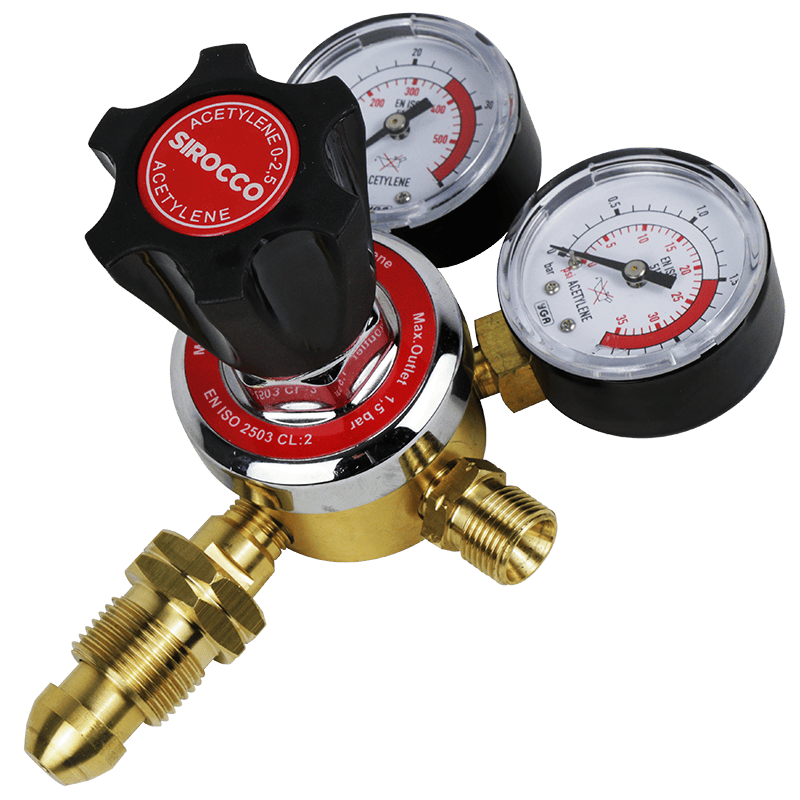

Sirocco Everyday Single Stage, 2 Gauge, Acetylene Gas Regulator. Acetylene Regulators have a 25 bar capability with a 1.5 bar maximum outlet pressure. Sirocco Gas Regulators allow for extended service with its robust construction. Reliable and Consistent Delivery can be achieved due to the high-quality valve operation. Sirocco Regulators feature accurate gauges for optimal gas consumption. Design Options:
- Bottom entry design suited for top outlet cylinder valves
- Side entry design suited for cylinders with a horizontal connection gas valve
- Flow rate up to 96m³/h (3389 ft³/h)
- Improved Valve design to reduce gas pressure pulses
- Fitted with 1/4” G parallel threaded gauges
- Fitted with standard 3/8” BSP outlet
- Fitted with 5/8” BSP inlet connections
Additional Information
| Weight | 1.006 kg |
|---|---|
| Single stage | 2 gauge |
| Entry design | Bottom entry |
| Input pressure | 25 bar |
| Outlet pressure | 1.5 bar |
| Flow rate | Up to 96m³/h (3389 ft³/h) |
| Gauge fitted | 1/4" g parallel threaded |
| Outlet | 3/8" bsp, standard |
| Inlet connections | 5/8" bsp |
| Valve design | Improved valve design to reduce gas pressure pulses |
| Gas equipment type | Regulators |
| Set size | Single piece set/item |
| Standards | En iso 2503 cl:2 |
