PFE 501 FUME EXTRACTION TORCH X 3MT
Login to see prices
SKU: PFE5000-30ERThese innovative MIG/MAG fume extraction welding torches have been meticulously designed and engineered to meet the highest industrial standards. The PRO-FUME range sets a new benchmark for operator protection, seamlessly integrating powerful fume extraction capabilities with the robust performance and reliability that welders expect from Parweld.
Why Use Fume Extraction Torches?
WELDING FUMES ARE DANGEROUS TO HEALTH AND HAVE BEEN LINKED TO LUNG CANCER. It is essential that you are using the best protection and performance available to remove welding fumes from the working environment. PAPR filter systems provide protection for the welder by cleaning the air they are welding but do not reduce the volume of fume in the air and so do not provide protection to the welder when they are setting up or doing other operations. Fume extraction must be part of any protection strategy, for a welder working in fixed locations extraction hoods are effective but rely on the welder to ensure the hood is in the correct position to remove the fumes. For anyone working in a mixed manufacturing environment or where they move around the fabrication then on torch fume extraction is the perfect solution.
Additional Information
| Torch package | Euro fitting x 3m |
|---|---|
| Torch neck | Standard neck |
| Torch | 501w |
| Torch type | Mig |
| Mig type | Bzl |
| Cooling | Water |
| Co<sub>2</sub> | 520a @ 100% duty cycle |
| Mixed gas | 430a @ 100% duty cycle |
| Wire size options | 1.0mm 1.6mm (0.040" 1/16") |
| Fitting options | Euro |
| Length options | 3m, 4m, 5m |
| Material | Metal, plastic |
| Front end consumables | Heavy duty m8 thread |
| Colour | Brass, bronze, grey, purple |
| Standards | En60974 7 |
| Set size | Single piece set/item |
| Torch parts | Fully assembled torch |

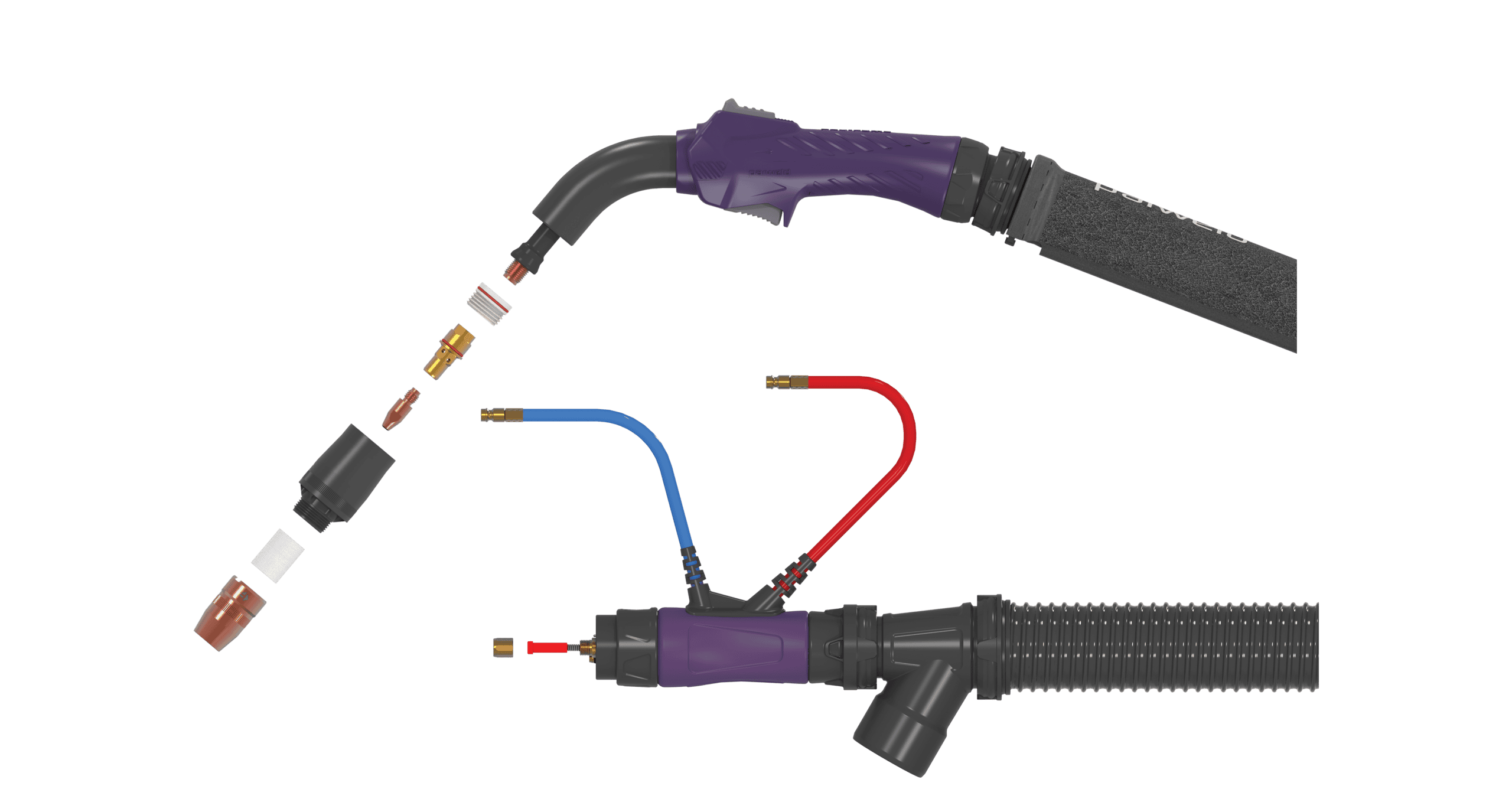

Product Breakdown
PFE 501 FUME EXTRACTION TORCH X 3MT
