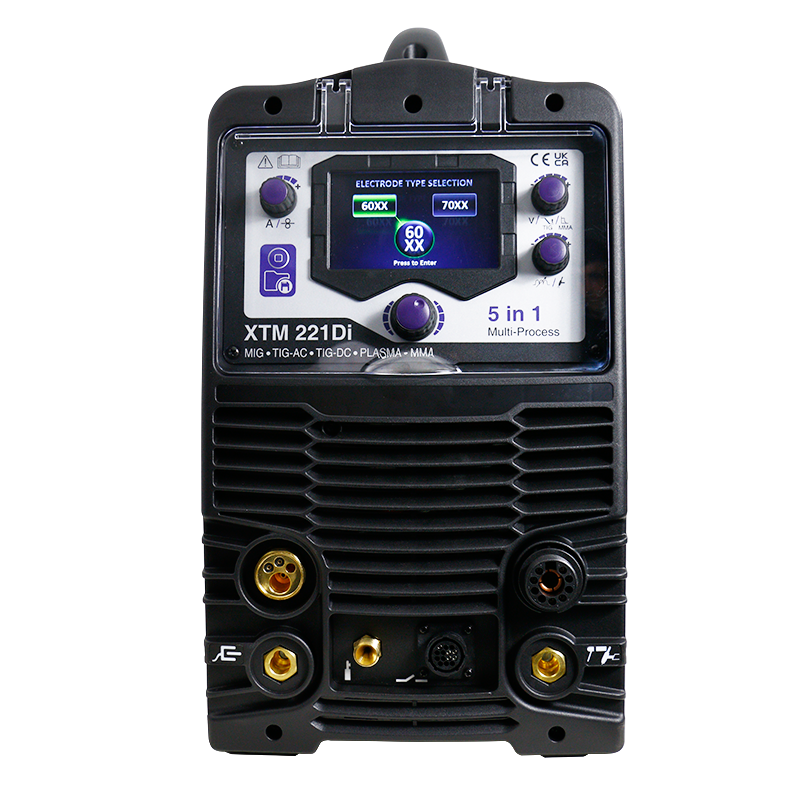

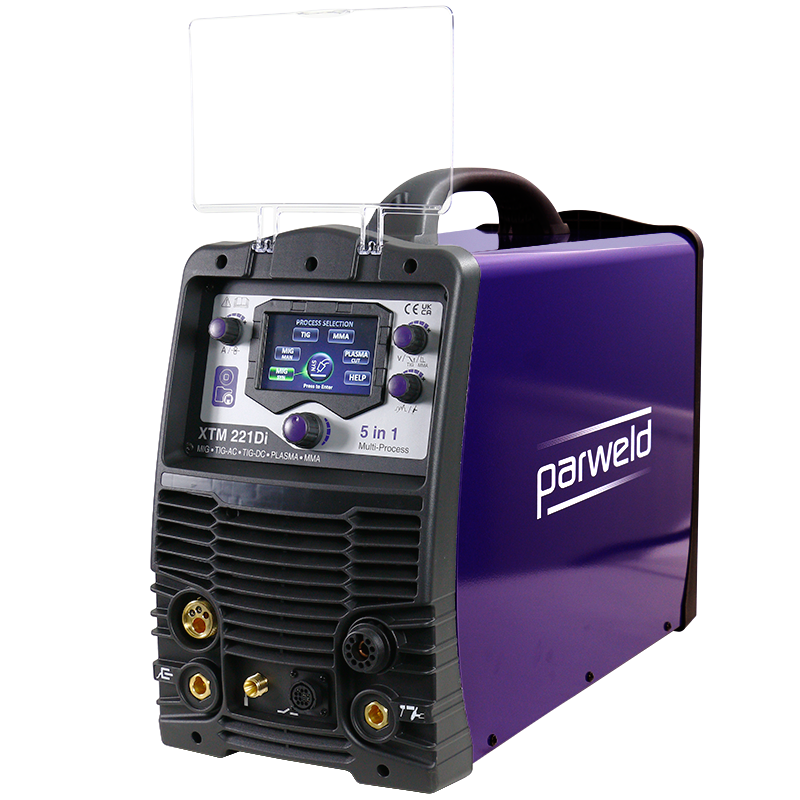

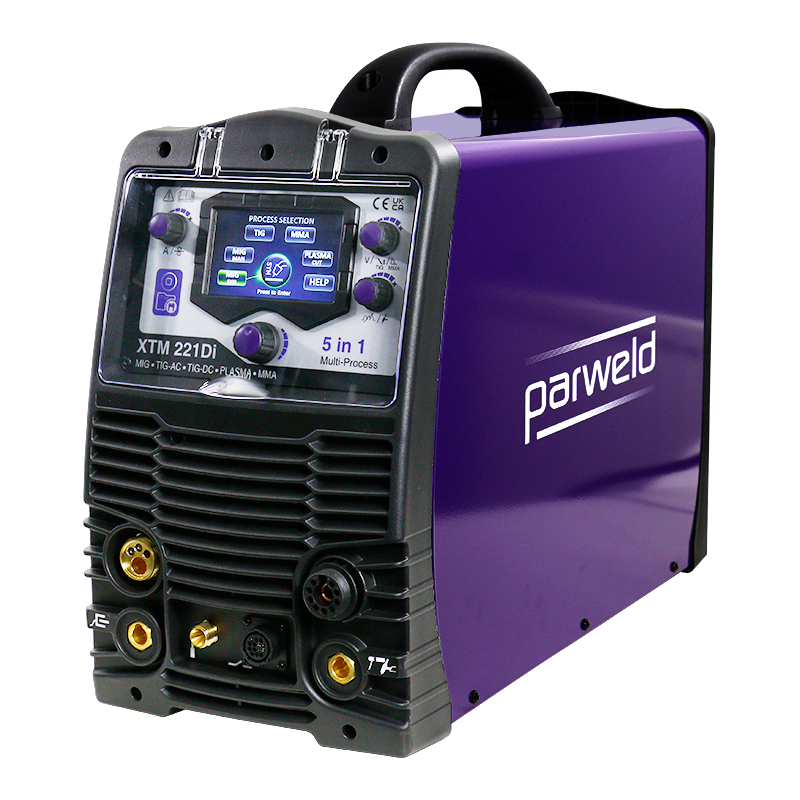

xtm221Di DIGITAL MIG MACHINE 5 IN 1 MMA LEADS AND GAS HOSE
Login to see prices
SKU: XTM221DIAlso Comes With: CKE403 MMA Lead, 3m Input Cable, 3m Earth Lead and Triple Gas Hose Set
The 5 in 1 Multi-Process, XTM 221Di MIG Machine is ideal for the welding of Steels, Stainless Steels and Aluminium using the MIG, AC TIG, DC TIG and MMA processes, as well as cutting and gouging using the Plasma process. The machine uses auto polarity switching so there is no need to change the work lead connections on the front of the machine. Instant swapping between the PLASMA, MIG & TIG processes with one touch of the torch trigger makes it well suited to multi process workshops. The multi-language digital user interface rapidly gets you to the correct machine setting with minimal process knowledge, on site or in the workshop. Key Features Include:

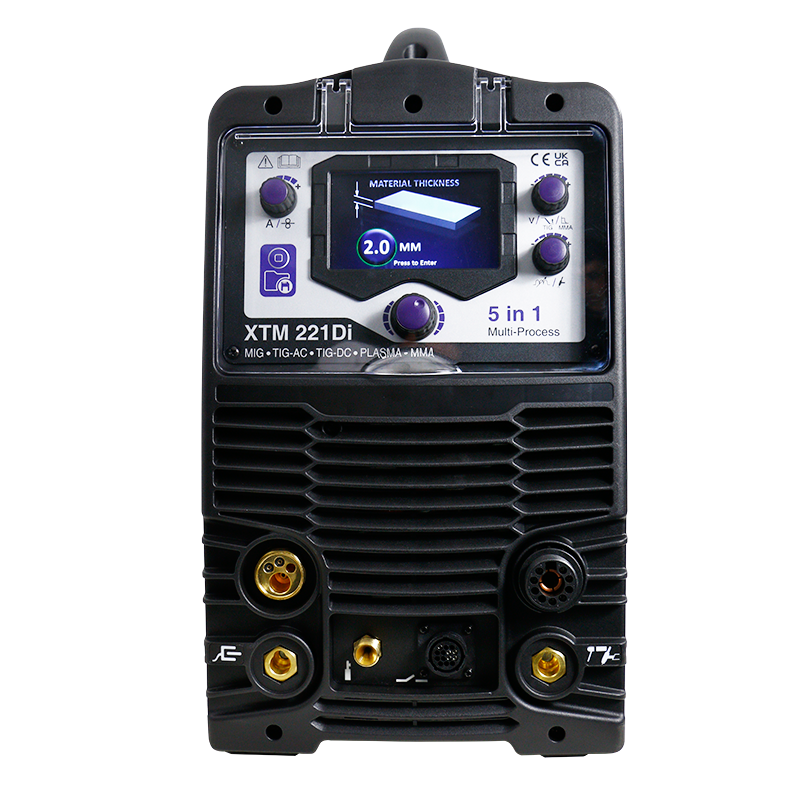

- Multi-Language Easy to Follow Digital Interface
- Large High Quality Colour Screen
- HF Start Pulse TIG Function - For Superior Arc Control
- Rapid Synergic Setup for MIG, TIG and MMA Welding
- Rapid Synergic Setup for PLASMA Cutting
- Dual Voltage 110V / 230V
Additional Information
| Weight | 30 kg |
|---|---|
| Length | 650 cm |
| Width | 275 cm |
| Height | 495 cm |
| Torch and regulator | Machine only |
| Trolley | No trolley |
| Phase | Single phase |
| Machine style | Compact, portable |
| Machine type | Inverter |
| Maximum current | 140a dc, 200a dc |
| Maximum current (plasma) | 25a (110v), 40a (230v) |
| Duty cycle | 200a @ 30% duty cycle |
| Input voltage | 230v 1p, 110v 1p, dual voltage, smart switching |

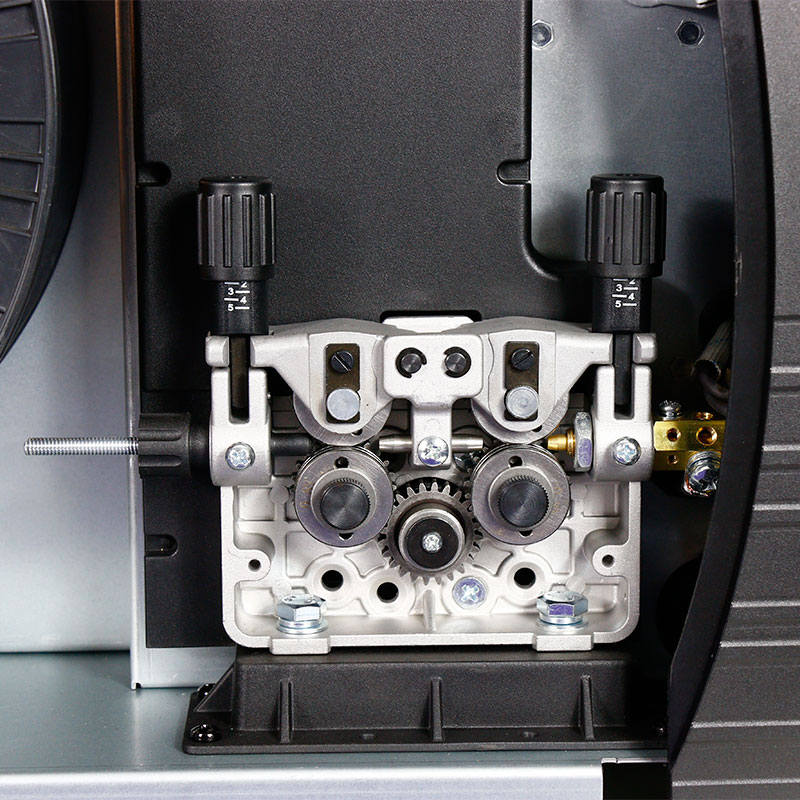

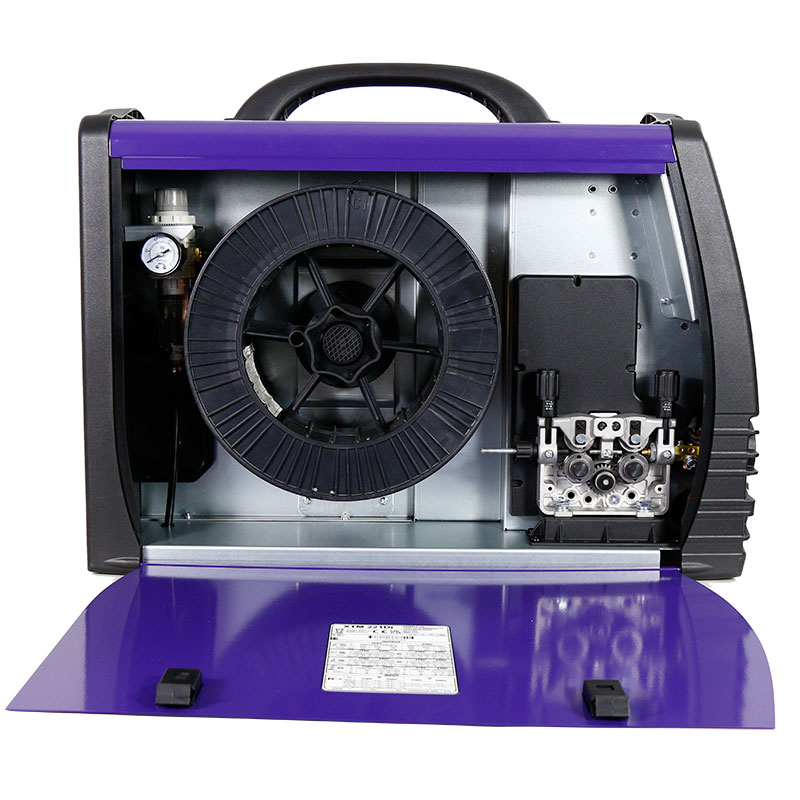

| Feed box | 4 roll drive |

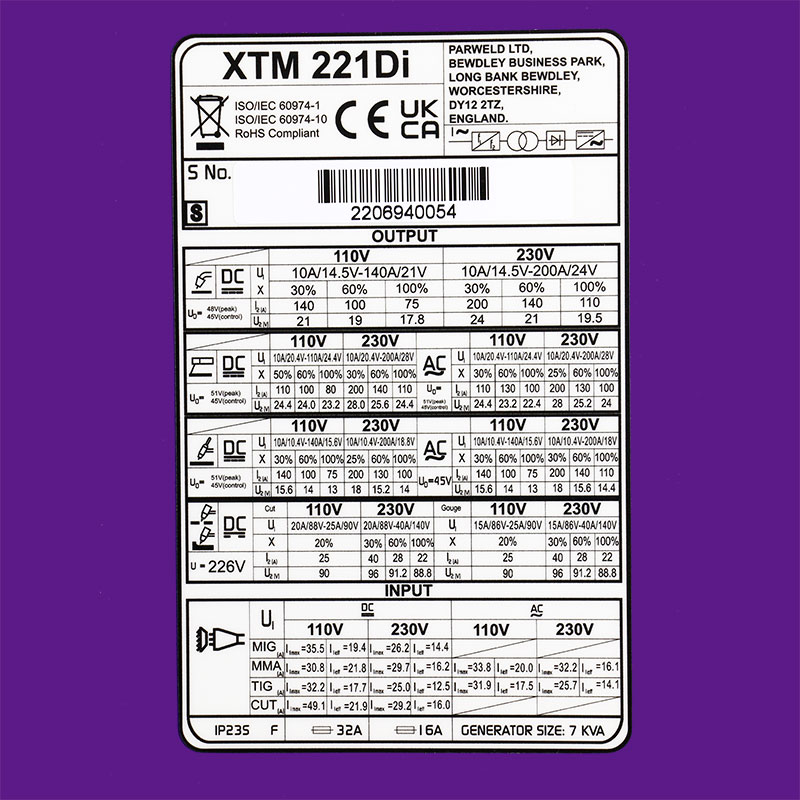

| Input current (eff) | Mig 21.4a @ 110v / 15a @ 230v, tig 20.5 @110v / 11.3a @ 230v, mma 20.6 @110v / 15.4a @ 230v |
| Output current (maximum) | Mig 140a (110v) 200a (230v), tig 140a (110v) 200a (230v), mma 110a (110v) 200a (230v), plasma 25a (110v) 40a (230v) |
| Output | Dc |
| Wire size | 0.6 1.0mm |

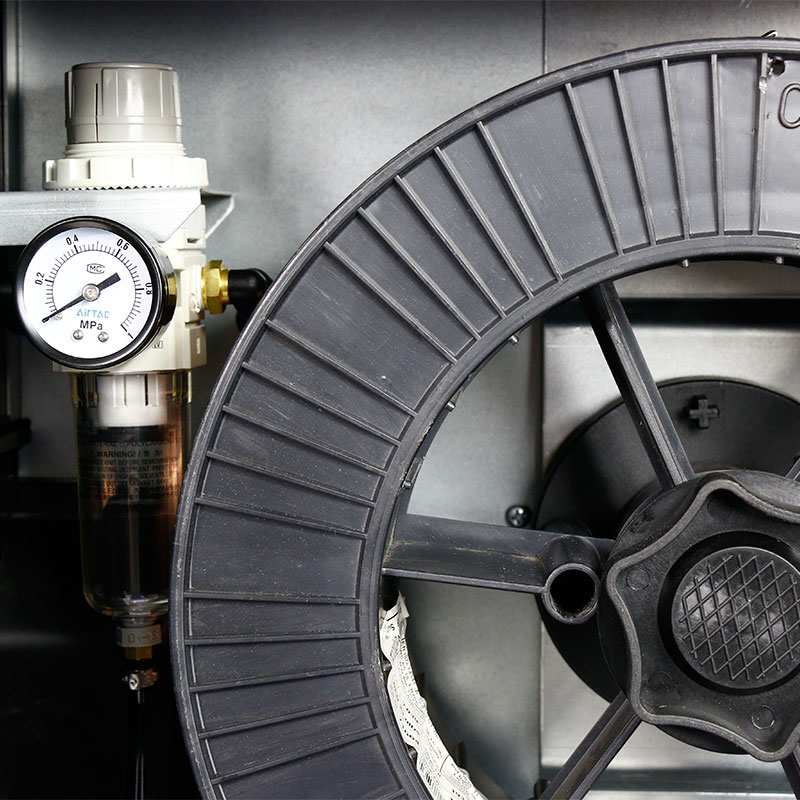

| Spool size | 200mm (5kg), 300mm (15kg) |
| Minimum fuse rating | 16a, 32a |
| Kva | 7.4 |
| Generator size (requires avc) | 10 kva |
| Enclosure protection | Ip23s |
| Cooling | Air, fan, forced |
| Comes with | 3 x gas hoses, 3m earth cable, 3m input cable, cke mma lead, digital user interface, multi language functions |
| Special features | Digital user interface, pulse tig function for superior arc control, smart switching dual voltage, synergic control, synergic welding rapid set up |
| Mig machine type | Inverter |
| Warranty | 5 year warranty |
| Standards | Ip23s, iso/iec 60974 1, iso/iec 60974 6 & rohs compliant |
