XTM256i 250AMP MIG INVERTER 400V
Login to see prices
SKU: XTM256IAlso Comes With: TR008 Trolley with Storage Drawer, 3m Input Cable, 3m Earth Lead and Gas Hose

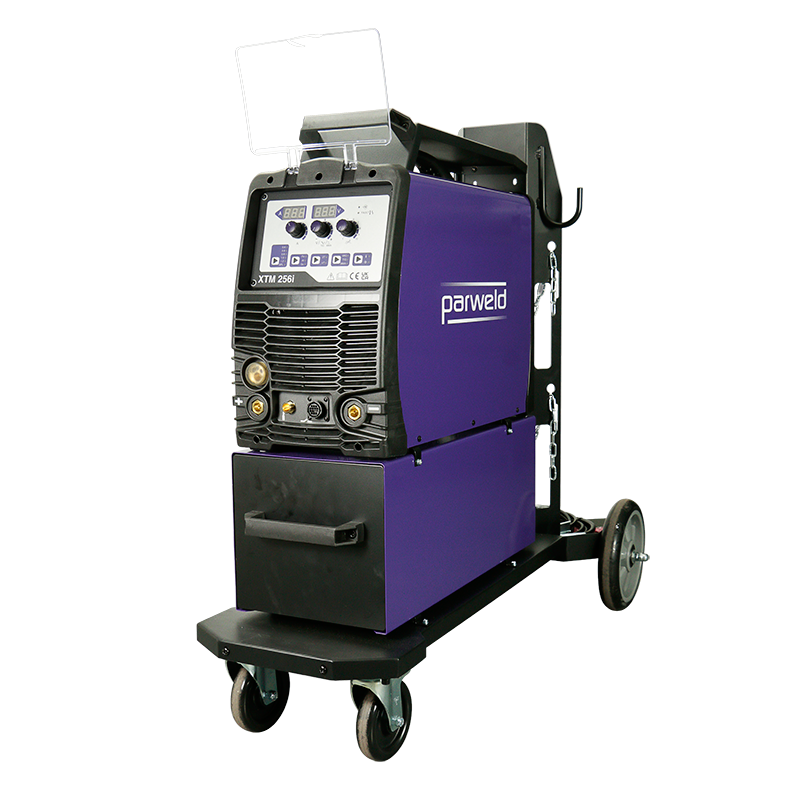

The XTM 256i three phase MIG Inverter is a high performance multi-process power source capable of MIG, Lift TIG, and MMA welding. The LED digital displays show all parameters and data in real time. The machine has built in synergic control, so welding parameters will adjust automatically when the current is changed, making it easy to operate. The XTM 256i Power Source Welding Machine comes ready assembled to the TR008 Trolley, which is equipped witha conveniant practical drawer attachment. Key Features Include:
- Multi-Process MIG/TIG/MMA Welding
- 400V Three Phase Machine
- Quick and Easy Selection of Welding Processes, Control type, Material and Wire Size
- Synergic Control
- Fan On Demand
- 2T / 4T Trigger Latching
- Real Time Display of Parameters and Data
- Soft Switching Technology for improved efficency
- Clear Visor for Front Panel Controls Protection
- Supplied with Gas Hose and 3m Earth Lead
Additional Information
| Weight | 23 kg |
|---|---|
| Length | 660 cm |
| Width | 280 cm |
| Height | 500 cm |
| Torch and regulator | Machine only |
| Phase | Three phase |
| Machine style | Compact, portable |
| Machine type | Inverter |
| Maximum current | 250a dc |
| Duty cycle | 250a @ 35% duty cycle |
| Input voltage | 400v 3p |
| Voltage | 10.4 20v (tig), 14.5 26.5v (mig), 20.4 30v (mma) |
| Feed box | 4 roll drive |
| Input current (eff) | Mig 9.3a, tig 7.9a, mma 10.9a |
| Output | Dc |
| Wire size | 0.6 1.2mm |
| Spool size | 200mm (5kg), 300mm (15kg) |
| Minimum fuse rating | 16a |
| Kva | 11.6 |
| Generator size (requires avc) | 13 kva |
| Enclosure protection | Ip23s |
| Cooling | Air, fan, on demand, water (with unit attachment) |
| Comes with | 3m earth cable, 3m input cable, gas hose, tr008 trolley |
| Ideal for applications | Metal fabrication, training, industrial manufacturing, synergic program for steel |
| Special features | 2t/4t latching, bottle stand, storage drawer, synergic control, synergic welding rapid set up |
| Mig machine type | Inverter |
| Warranty | 5 year warranty |
| Standards | Ip23s, iso/iec 60974 1, iso/iec 60974 6 & rohs compliant |
