160A MMA DUAL VOLTAGE INVERTER 80v OCV

SKU: XTS166

Package Includes: XTS 166 Dual Voltage Machine, 3m Input Cable, 3m Earth Lead and 3m Electrode Holder

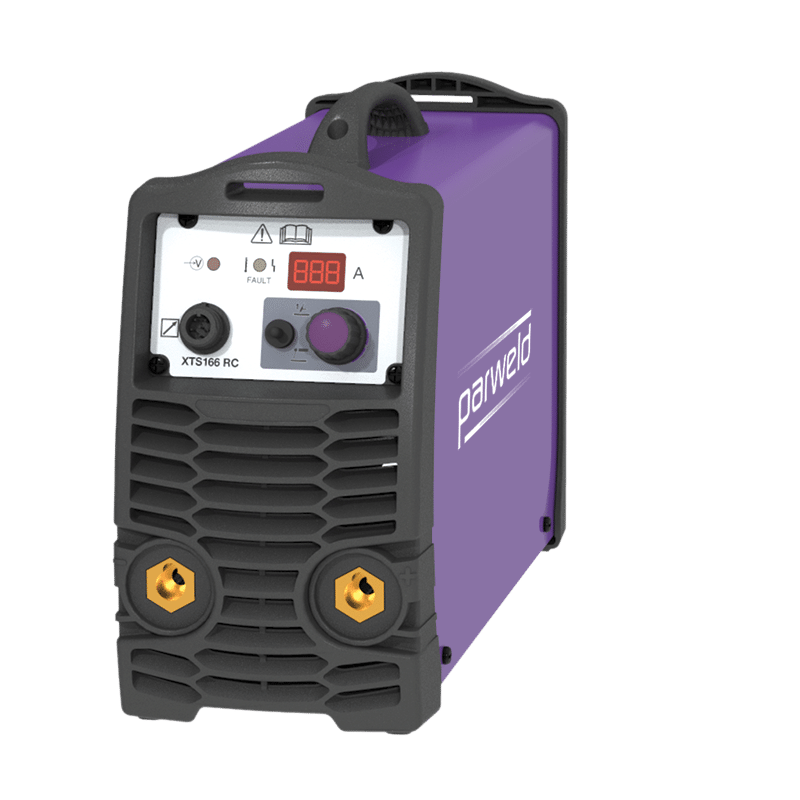

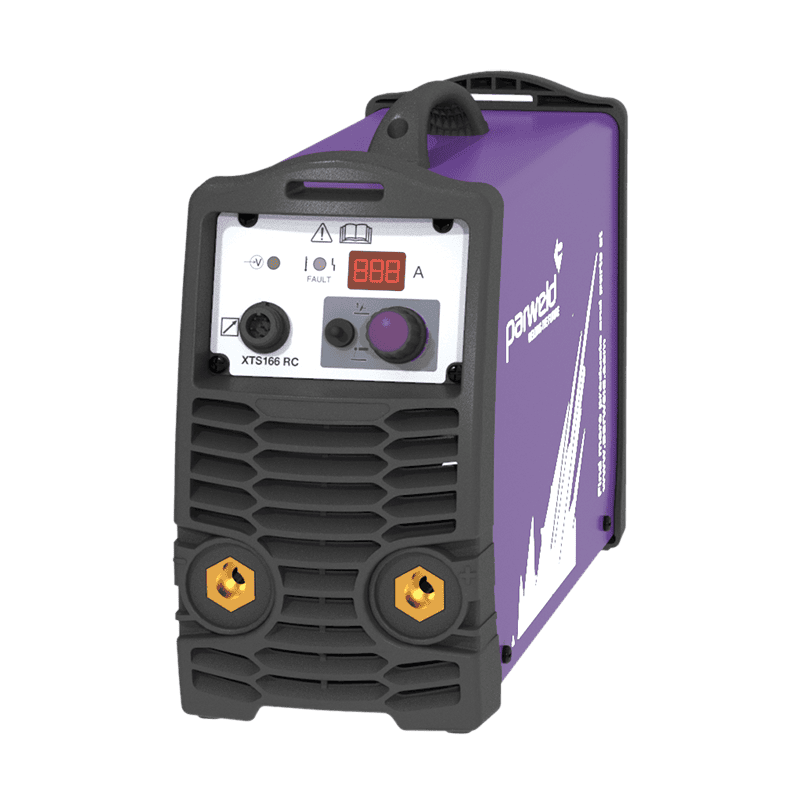

The XTS 166RC is a professional level MMA inverter suitable for site and workshop use. This machine will run rutile and cellulosic electrodes up to 3.2mm. The XTS 166 can accept an optional remote current control for remote working. TIG welding with steel and stainless steel can be performed. The XTS 166RC is able to cope with inputs which fluctuate by +/-15% & can be used with the majority of generators. The machine is housed in a rugged steel case. A carry case is available as an optional extra. Key Features Include:

Remote Control Option for Rutile and Low Hydrogen Electrodes
Dual Voltage 110V / 230V Single Phase PFC
160A @ 40% Duty Cycle
Digital Display for Easy Setting
Suitable for Lift TIG Mode
Generator Friendly
Lightweight at just 7kg
81V OCV
Easy electrode re-striking with hot start (MMA)
Connections 35-50mm twist lock

Additional Information

Weight	7 kg
Length	375 cm
Width	140 cm
Height	245 cm
Torch and regulator	Machine only
Includes remote control	No
Phase	Single phase
Machine style	Compact
Machine type	Inverter
Maximum current	10 125a (110v), 10 160a dc (230v)
Duty cycle	160a @ 40% duty cycle
Input voltage	230v 1p, 110v 1p
No load voltage	81v
Max electrode size	3.2mm
Input current (eff)	14a
Output	Dc
Cable connection	35 50 twist lock
Minimum fuse rating	16a, 32a
Kva	5.6
Generator size (requires avc)	7 kva
Cooling	Air, fan, forced
Enclosure protection	Ip23s
Comes with	3m earth lead, 3m cable, electrode holder, remote control
Ideal for applications	Agricultural, diy, metal fabrication, remote working, site welding
Special features	Generator friendly, lift tig mode, re striking, re striking with hot start, remote current control
Mma machine type	Inverter
Warranty	5 year warranty
Standards	Ip23s, iso/iec 60974 1, iso/iec 60974 6, rohs compliant
